Product DescriptionCompany Info.<>
- Model:
- bubble cap trays
- Processing customization:
- No
- Material:
- carbon steel
- Use:
- Distillation, absorption

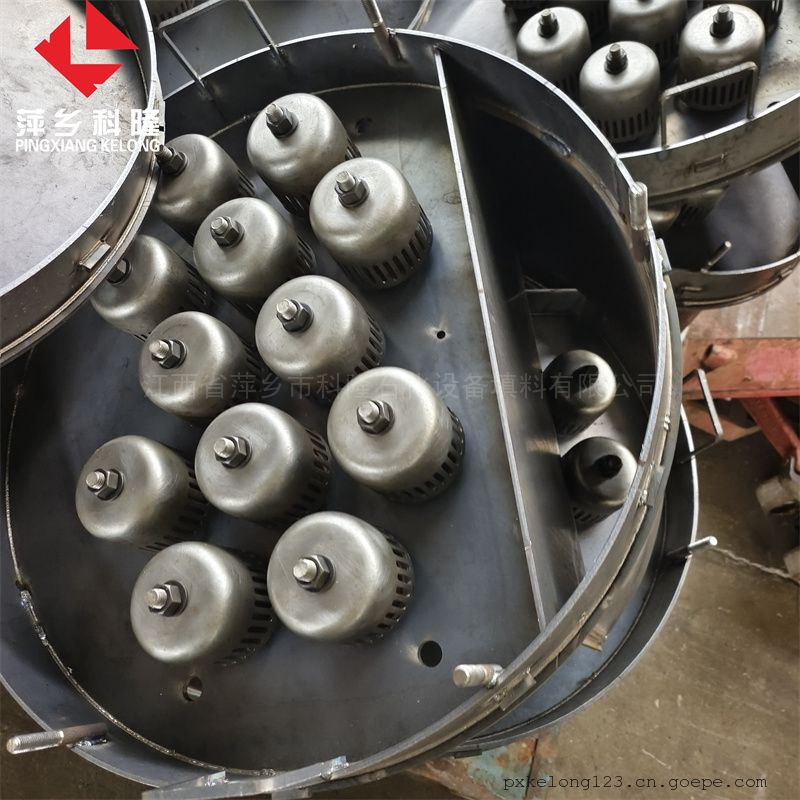

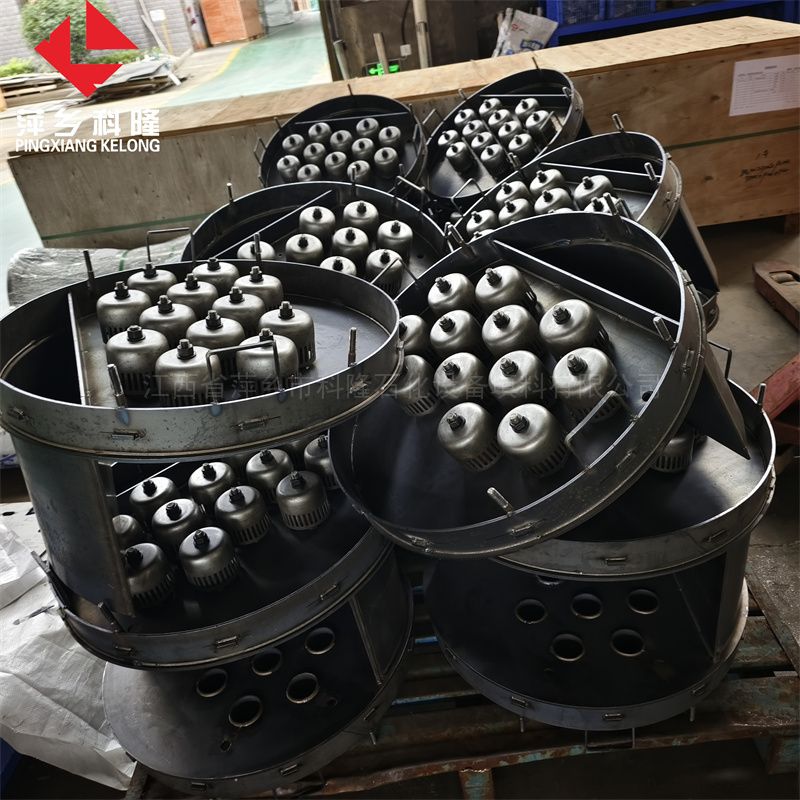

Tray of tray column is the main mass transfer element. According to different gas-liquid contact elements, it can be divided into bubble column, tray column float valve column, tongue column and floating jet column; according to gas-liquid two-phase flow mode, there are cross-flow tray column and counter-flow tray column, or called tray with downcomer and tray without downcomer; according to liquid flow mode, there are single overflow type and double overflow type. Bubble cap tray consists of tray, bubble cap, riser pipe, downcomer overflow and so on. There are many forms of blisters used in production, * the most commonly used is round blisters.
A plurality of bubble cap trays are horizontally arranged in the bubble cap tower according to a certain interval, liquid flows through each layer plate from top to bottom under the action of gravity and then is discharged from the bottom of the tower to maintain a flowing liquid layer with a certain thickness on each layer tray; gas is pushed by pressure difference to sequentially pass through the liquid layer on each tray from the bottom of the tower and rise to the top of the tower to be discharged.
Gas and liquid contact plate by plate in the tower for mass and heat exchange. Each layer of bubble cap tray is provided with several holes, and the riser pipe is covered with bubble caps. When the ascending gas enters the liquid layer through the bubble caps, it is dispersed into many fine bubbles, providing a large number of mass transfer interfaces for the gas-liquid two phases. Bubble columns may be considered only in certain circumstances, such as large capacity variations, high operational stability requirements, and relatively stable separation capabilities. Bubble column today a variety of excellent column plate type comparison in the inferior position, so now the bubble column application has been less.
The advantages of bubble column (1) is not easy to leak liquid phenomenon;(2) has a good operation flexibility, easy to operate (3) has a constant, high plate efficiency (4) tray is not easy to plug (5) material adaptability;(6) bubble column has a high production capacity, suitable for large-scale production bubble column disadvantages: bubble column weakness is complex structure, high cost, gas pressure drop through each layer of tray, tray installation and maintenance is not convenient.
There are many potential configurations for riser and bubble caps. Typical manufacturing methods for fixing them to trays include seal welding, expansion joint, type bubble tray, including standard round bubble tray, strip bubble tray and other shaped bubble tray, and can be customized to customer requirements.
