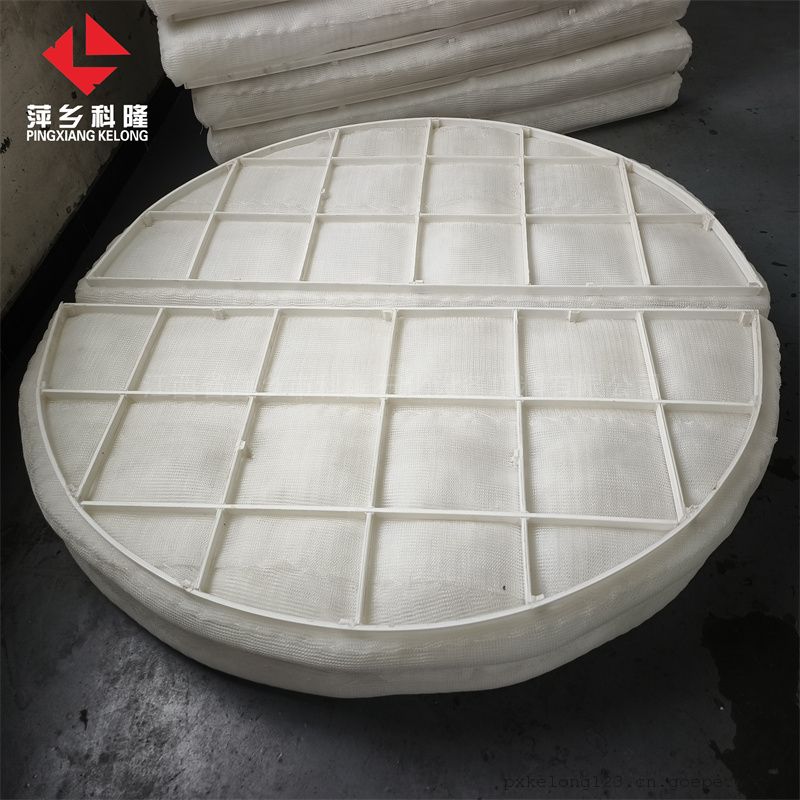

PP polypropylene material mesh mist eliminator tower top mist eliminator specifications can be customized

 Polypropylene mesh demister is mainly simple in structure, light weight, large porosity, small pressure drop, large contact surface area, high foam removal efficiency, easy installation, operation and maintenance, long service life, recommended working temperature is not greater than 90. the product is compose of corrugated plastic gas-liquid filt screen, plastic grating composed of screen block and support device for fixing screen block. that screen mist eliminator can not only filter large liquid foam suspended in air flow, but also filter small and micro liquid foam. the product is widely used in chemical industry, petroleum, sulfuric acid, medicine, light industry, metallurgy, machinery, construction, aviation, marine transportation, environmental protection and other industries, such as flue gas desulfurization in environmental protection engineering, flue gas dewatering, mist removal, dust removal in factory production process Eliminate harmful substances, purify air and protect environment.
 Polypropylene wire mesh demister is produced according to standard, used to separate gas entrained droplets in the tower to ensure mass transfer efficiency, reduce the loss of valuable materials and improve the operation of the compressor after the tower. Plastic wire mesh demister is generally set at the top of the tower, mainly used for gas separation, but also as an air pollution filter.

 The mesh mist eliminator can not only filter larger liquid foam suspended in the air flow, but also filter smaller and smaller liquid foam. It is widely used in flue gas desulfurization in environmental protection projects, flue gas dewatering, mist removal, dust removal and harmful substances removal in factory production processes, air purification and environmental protection.

 Product features: low cost, light weight, porosity, pressure drop small, large specific surface area, high foam removal efficiency, easy installation, operation, maintenance, long service life, recommended working temperature less than 60;  PP   mesh demister specification parameters:
 Diameter: DN200~15000mm (or nominal diameter such as 1500mm), can be customized according to actual needs.
 Thickness: 50~500mm, common specifications are 100mm, 150mm, 200mm and so on.
 Screen type: divided into standard type (SP) and high penetration type (HP), etc.
 Mist separator types: top-mounted (S) and bottom-mounted (X), etc.

 PP screen demister working principle: When the gas with mist rises through the screen at a certain speed, due to the inertia of the rising mist, the mist collides with the screen filament and is attached to the filament surface. The dispersion of mist on the filament surface and the gravitational sedimentation of mist make the mist form larger droplets and flow along the filament to the junction point of two filaments. The wettability of the filament, the surface tension of the liquid, and the capillary action of the filament cause the droplets to grow larger and larger until the aggregated droplets become so large that their own gravity exceeds the combined force of the upward force of the gas and the surface tension of the liquid that the droplets separate and fall from the filament.
